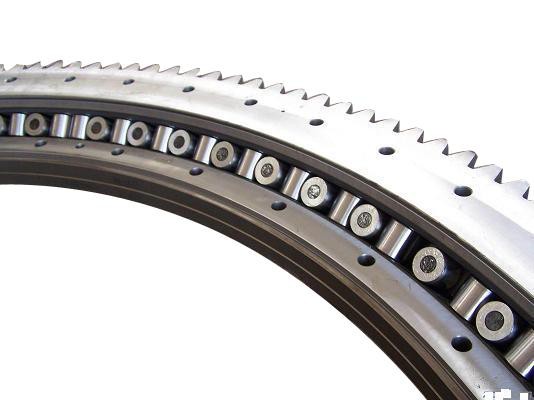

交叉滚子回转支承经常用在斗轮机,超重运输机械,港口机械,采挖机械,建筑工程机械等大型回转装置上,对工程机械起到了重要的作业。 交叉滚子回转支承由两个座圈组成,结构紧密,重量轻,制造精度高,装配间隙小,对安装精度要求高,滚子为1:1交叉排列,能同时承受轴向力倾覆力矩和较大的径向力。
产品参数:

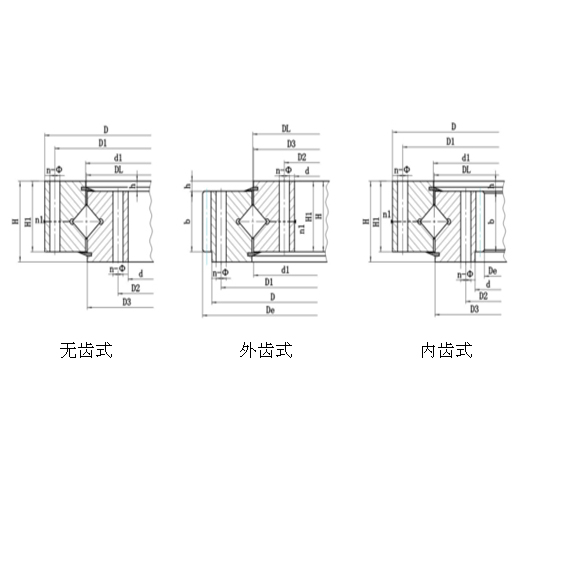

型号 | 基本型号 | 外形尺寸 | 安装尺寸 | 结构尺寸 | 齿轮参数 | 外齿参数Gear Data | 内齿参数 | 齿轮圆周力 | 参考重量 | ||||||||||||||||
number | Basic type | Configuration | Mounting size | Structural size | Gear Data | Int Gear | Tooth lood | Rete rence weight | |||||||||||||||||
无齿式 | 外齿式 | 内齿式 | D | d | H | D1 | D2 | n | φ | n1 | D3 | d1 | H1 | h | b | x | m | De | Z | De | Z | 正火Z | 调质 | kg | |
Toothless DL mm | Ext Toothing DL mm | Int Toothing Dl mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | 104N | T | ||||
104N | |||||||||||||||||||||||||
1 | 110.25.500 | 111.25.500 | 113.25.500 | 602 | 398 | 75 | 566 | 434 | 20 | 18 | 4 | 498 | 502 | 65 | 10 | 60 | 0.5 | 5 | 629 | 123 | 367 | 74 | 3.7 | 5.2 | 80 |
112.25.500 | 114.25.500 | 6 | 628.8 | 102 | 368.4 | 62 | 4.5 | 6.2 | |||||||||||||||||
2 | 110.25.560 | 111.25.560 | 113.25.560 | 662 | 458 | 75 | 626 | 494 | 20 | 18 | 4 | 558 | 562 | 65 | 10 | 60 | 0.5 | 5 | 689 | 135 | 427 | 86 | 3.7 | 5.2 | 90 |
112.25.560 | 114.25.560 | 6 | 688.8 | 112 | 428.4 | 72 | 4.5 | 6.2 | |||||||||||||||||
3 | 110.25.630 | 111.25.630 | 113.25.630 | 732 | 528 | 75 | 696 | 564 | 24 | 18 | 4 | 628 | 632 | 65 | 10 | 60 | 0.5 | 6 | 772.8 | 126 | 494.4 | 83 | 4.5 | 6.2 | 100 |
112.25.630 | 114.25.630 | 8 | 744.4 | 94 | 491.2 | 62 | 6 | 8.3 | |||||||||||||||||
4 | 110.25.710 | 111.25.710 | 113.25.710 | 812 | 608 | 75 | 776 | 644 | 24 | 18 | 4 | 708 | 712 | 65 | 10 | 60 | 0.5 | 6 | 850.8 | 139 | 572.4 | 96 | 4.5 | 6.2 | 110 |
112.25.710 | 114.25.710 | 8 | 854.4 | 104 | 571.2 | 72 | 6 | 8.3 | |||||||||||||||||
5 | 110.28.800 | 111.28.800 | 113.28.800 | 922 | 678 | 82 | 878 | 722 | 30 | 22 | 6 | 798 | 802 | 72 | 10 | 65 | 0.5 | 8 | 966.4 | 118 | 635.2 | 80 | 6.5 | 9.1 | 170 |
112.28.800 | 114.28.800 | 10 | 968 | 94 | 634 | 64 | 8.1 | 11.4 | |||||||||||||||||
6 | 110.28.900 | 111.28.900 | 113.28.900 | 1022 | 778 | 82 | 978 | 822 | 30 | 22 | 6 | 898 | 902 | 72 | 10 | 65 | 0.5 | 8 | 1062.4 | 130 | 739.2 | 93 | 6.5 | 9.1 | 190 |
112.28.900 | 114.28.900 | 10 | 1068 | 1004 | 734 | 74 | 8.1 | 11.4 | |||||||||||||||||
7 | 110.28.1000 | 111.28.1000 | 113.28.1000 | 1122 | 878 | 82 | 1078 | 922 | 36 | 22 | 6 | 998 | 1002 | 72 | 10 | 65 | 0.5 | 10 | 1188 | 116 | 824 | 83 | 8.1 | 11.4 | 210 |
112.28.1000 | 114.28.1000 | 12 | 1185.6 | 93 | 820.8 | 69 | 9.7 | 13.6 | |||||||||||||||||
8 | 110.28.1120 | 111.28.1120 | 113.28.1120 | 1242 | 998 | 82 | 1198 | 1042 | 36 | 22 | 6 | 1118 | 1122 | 72 | 10 | 65 | 0.5 | 10 | 1298 | 127 | 944 | 95 | 8.1 | 11.4 | 230 |
112.28.1120 | 114.28.1120 | 12 | 1305.6 | 106 | 940.8 | 79 | 9.7 | 13.6 | |||||||||||||||||
9 | 110.32.1250 | 111.32.1250 | 113.32.1250 | 1390 | 1110 | 91 | 1337 | 1163 | 40 | 26 | 5 | 1248 | 1252 | 81 | 10 | 75 | 0.5 | 12 | 1449.6 | 118 | 1048.8 | 88 | 11.3 | 15.7 | 350 |
112.32.1250 | 114.32.1250 | 14 | 1453.2 | 101 | 1041.6 | 75 | 13.2 | 18.2 | |||||||||||||||||
10 | 110.32.1400 | 111.32.1400 | 113.32.1400 | 1540 | 1260 | 91 | 1487 | 1313 | 40 | 26 | 5 | 1398 | 1402 | 81 | 10 | 75 | 0.5 | 12 | 1605.6 | 131 | 1192.8 | 100 | 11.3 | 15.7 | 4000 |
112.32.1400 | 114.32.1400 | 14 | 1607.2 | 112 | 1195.6 | 86 | 13.2 | 18.2 | |||||||||||||||||
11 | 110.32.1600 | 111.32.1600 | 113.32.1600 | 1740 | 1460 | 91 | 1687 | 1531 | 45 | 26 | 5 | 1598 | 1602 | 81 | 10 | 75 | 0.5 | 14 | 1817.2 | 127 | 1391.6 | 1000 | 13.2 | 18.2 | 440 |
112.32.1600 | 114.32.1600 | 16 | 1820.8 | 111 | 1382.4 | 87 | 15.1 | 22.4 | |||||||||||||||||
12 | 110.65.1800 | 111.65.1800 | 113.65.1800 | 1940 | 1660 | 91 | 1887 | 1713 | 45 | 26 | 5 | 1798 | 1802 | 81 | 10 | 75 | 0.5 | 14 | 2013.2 | 141 | 1573.6 | 113 | 13.2 | 18.2 | 500 |
112.65.1800 | 114.65.1800 | 16 | 2012.8 | 123 | 1574.4 | 99 | 15.1 | 22.4 | |||||||||||||||||
13 | 110.40.2000 | 111.40.20000 | 113.40.20000 | 2178 | 1825 | 112 | 2110 | 1891 | 48 | 33 | 8 | 1997 | 2003 | 100 | 10 | 90 | 0.5 | 16 | 2268.8 | 139 | 1734.4 | 109 | 18.1 | 25 | 900 |
112.40.20000 | 114.40.20000 | 18 | 2264.4 | 123 | 1735.2 | 97 | 20.3 | 28.1 | |||||||||||||||||
14 | 110.40.2240 | 111.40.2240 | 113.40.2240 | 2418 | 2065 | 112 | 2350 | 2431 | 48 | 33 | 8 | 2237 | 2243 | 100 | 12 | 90 | 0.5 | 16 | 2492.8 | 153 | 1990.4 | 125 | 18.1 | 25 | 1000 |
112.40.2240 | 114.40.2240 | 18 | 2498.4 | 136 | 1987.2 | 111 | 13.2 | 28.1 | |||||||||||||||||
15 | 110.40.2500 | 111.40.2500 | 113.40.2500 | 2678 | 2325 | 112 | 2610 | 2391 | 56 | 33 | 8 | 2497 | 2503 | 100 | 12 | 90 | 0.5 | 18 | 2768.4 | 151 | 2239.2 | 125 | 20.3 | 28.1 | 1100 |
112.40.2500 | 114.40.2500 | 20 | 2776 | 136 | 2228 | 112 | 22.6 | 31.3 | |||||||||||||||||
16 | 110.40.2800 | 111.40.2800 | 113.40.2800 | 2978 | 2625 | 112 | 2910 | 2691 | 56 | 33 | 8 | 2797 | 2803 | 100 | 12 | 90 | 0.5 | 18 | 3074.4 | 168 | 2527.2 | 141 | 20.3 | 28.1 | 1250 |
112.40.2800 | 114.40.2800 | 20 | 3076 | 151 | 2528 | 127 | 22.6 | 31.3 | |||||||||||||||||
17 | 110.50.3150 | 111.50.3150 | 113.50.3150 | 3376 | 2922 | 134 | 3286 | 3014 | 56 | 45 | 8 | 3147 | 3153 | 122 | 12 | 110 | 0.5 | 20 | 3476 | 171 | 2828 | 142 | 27.6 | 38.3 | 2150 |
112.50.3150 | 114.50.3150 | 22 | 3471.6 | 155 | 2824.8 | 129 | 30.4 | 42.1 | |||||||||||||||||
18 | 110.50.3550 | 111.50.3550 | 113.50.3550 | 3776 | 3322 | 134 | 3686 | 3414 | 56 | 45 | 8 | 3547 | 3553 | 122 | 12 | 110 | 0.5 | 20 | 3876 | 191 | 3228 | 162 | 27.6 | 38.3 | 2470 |
112.50.3550 | 114.50.3550 | 22 | 3889.6 | 174 | 3220.8 | 147 | 30.4 | 42.1 | |||||||||||||||||
19 | 110.50.4000 | 111.50.4000 | 113.50.4000 | 4226 | 3772 | 134 | 4136 | 3864 | 60 | 45 | 10 | 3997 | 4003 | 122 | 12 | 110 | 0.5 | 22 | 4329.6 | 194 | 3660.8 | 167 | 30.4 | 42.1 | 2800 |
112.50.4000 | 114.50.4000 | 25 | 4345 | 171 | 3660 | 147 | 34.5 | 47.8 | |||||||||||||||||
20 | 110.50.4500 | 111.50.4500 | 113.50.4500 | 4726 | 4272 | 134 | 4636 | 4364 | 60 | 45 | 10 | 4497 | 4503 | 122 | 12 | 110 | 0.5 | 22 | 4835.6 | 217 | 4166.8 | 190 | 30.4 | 42.1 | 3100 |
112.50.4500 | 114.50.4500 | 25 | 4845 | 191 | 4160 | 167 | 34.5 | 47.8 |
注:1、n1为润滑油孔数,均布:油杯M10×1 GB1152-1153-79 |
